| Model | LSH Series |
| Configuration | Permanent Magnet Variable Speed Drive |
| Category | Oil-cooled Professional Type |
| Pressure | 7-10.5bar/7-13bar |
| Power | 7.5-132kW |
| Air-end | Atlas Copco Air-end |

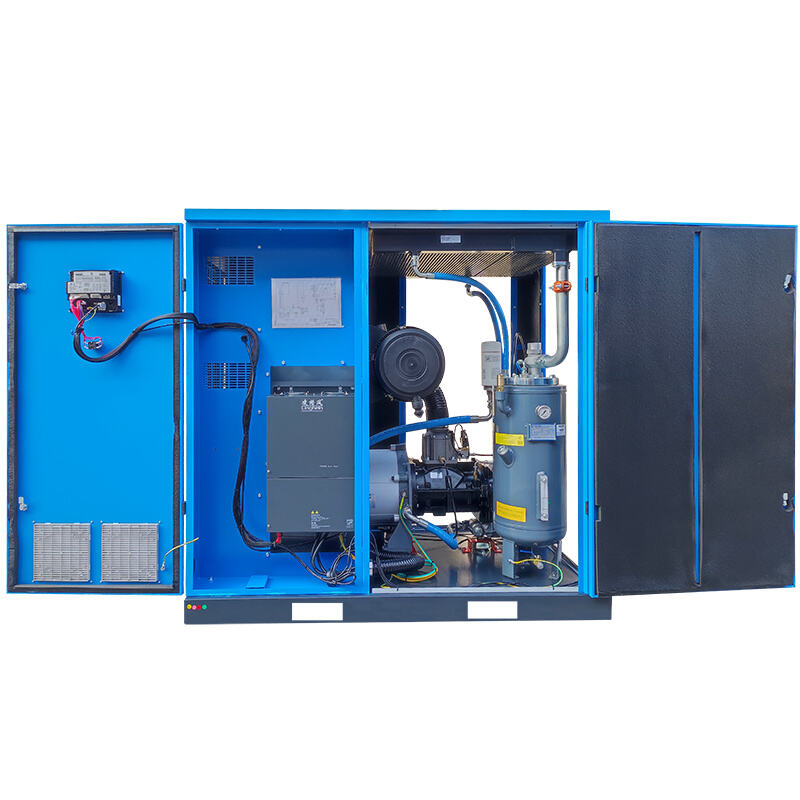

The Linghein LSH Series Oil-Cooled PM VSD Professional Screw Air Compressor is an innovative Oil Cooled PM VSD Compressor designed to maximize plant efficiency and lower thermal stress. Manufactured by Linghein (Shanghai) Gas Technology Co., Ltd., a wholly owned subsidiary of the Atlas Copco Group, this system features an Integrated Inverter Smart Air Solution that instantly adapts motor speed to fluctuating system pressures. Facilities demand an Energy Saving Variable Speed Compressor that cuts utility bills while acting as a reliable High Performance Heavy Duty Industrial Compressor in harsh environments. Operating as a premium Oil Cooled PM VSD Compressor, it combines advanced liquid cooling with an Integrated Inverter Smart Air Solution, working as a responsive Energy Saving Variable Speed Compressor and an unyielding High Performance Heavy Duty Industrial Compressor for smart manufacturing sectors.
Every precision-driven workshop requires an Oil Cooled PM VSD Compressor to stabilize operating costs. This embedded Integrated Inverter Smart Air Solution offers continuous system oversight, ensuring this specific Energy Saving Variable Speed Compressor limits mechanical friction while running as a durable High Performance Heavy Duty Industrial Compressor. Investing in this Oil Cooled PM VSD Compressor guarantees that your automated systems utilize an Integrated Inverter Smart Air Solution, creating a highly efficient Energy Saving Variable Speed Compressor system and a trusted High Performance Heavy Duty Industrial Compressor setup that cuts factory power spikes.
The fundamental operational advantage of this advanced Oil Cooled PM VSD Compressor is its exceptional application adaptability. Industrial operations deploy this Integrated Inverter Smart Air Solution because it tracks air volume needs smoothly, transforming the unit into an essential Energy Saving Variable Speed Compressor and a consistently running High Performance Heavy Duty Industrial Compressor. For automotive production and high-volume electronics packaging, installing an Oil Cooled PM VSD Compressor ensures complete pressure stability. The control drive acts as an Integrated Inverter Smart Air Solution, turning this unit into an outstanding Energy Saving Variable Speed Compressor and a reliable High Performance Heavy Duty Industrial Compressor that protects critical downstream tools.
Furthermore, textile production lines use this smart Oil Cooled PM VSD Compressor to maintain continuous daily output. The optimized internal components manage a complete Integrated Inverter Smart Air Solution, sustaining a highly efficient Energy Saving Variable Speed Compressor layout. It functions continuously as a heavy-duty High Performance Heavy Duty Industrial Compressor, ensuring a Permanent Magnet Oil Cooled PM VSD Compressor operates smoothly. This reliable Integrated Inverter Smart Air Solution delivers a robust Energy Saving Variable Speed Compressor package, creating an ideal High Performance Heavy Duty Industrial Compressor for smart factories worldwide.
Engineering brilliance defines this compact Oil Cooled PM VSD Compressor design. It utilizes an advanced Integrated Inverter Smart Air Solution to regulate oil temperatures, confirming its status as a premium Energy Saving Variable Speed Compressor and a durable High Performance Heavy Duty Industrial Compressor. By deploying an Oil Cooled PM VSD Compressor layout, Linghein provides an Integrated Inverter Smart Air Solution that monitors pressure changes instantly, giving business owners an Energy Saving Variable Speed Compressor and a resilient High Performance Heavy Duty Industrial Compressor that minimizes maintenance overhead.
Additionally, this high-efficiency Oil Cooled PM VSD Compressor features multi-stage fluid separation. Regulated via an Integrated Inverter Smart Air Solution, this Energy Saving Variable Speed Compressor ensures clean air output. It functions smoothly as a High Performance Heavy Duty Industrial Compressor, ensuring an Oil Cooled PM VSD Compressor remains optimized. This active Integrated Inverter Smart Air Solution yields a highly practical Energy Saving Variable Speed Compressor and a robust High Performance Heavy Duty Industrial Compressor for heavy industries.
· Premium Air-end: Newly designed Atlas Copco air-end delivers higher airflow and outstanding energy-saving performance
· Oil-Cooled Integrated PM Motor: IE5 high-efficiency oil-cooled permanent magnet motor with a leak and temperature resistant design
· High-Efficiency Drive System: Adopts a direct-drive transmission with transmission efficiency above 0.99
· Smart VSD Control System: Atlas Copco’s customized inverter paired with intelligent controller for real-time monitoring and easy management on compressors
· Energy Efficiency: 7.5-75kW model meet Chinese National Grade 1 energy efficiency standards, ensuring superior energy savings
Ideal for dusty, high-temperature, or space-limited industrial environments where stable performance and energy efficiency are critical.
| Model | Power(kw) | Pressure (bar) | F.A.D(㎡/min) | Transmission | Dimension(mm) Length*Width*Height | Weight(kg) | Connectione | ||
| Min | Max | Outlet | Water Pipe | ||||||
| LSH7.5 | 7.5 | 7 | 8.5 | 0.49-1.25 | Direct | 895x850x1050 | 195 | G3/4" | - |
| 7.5 | 10 | 10.5 | 0.43-1.10 | - | |||||
| LH11+ | 11 | 7 | 8.5 | 1.90 | Direct | 904x650x917 | 160 | G3/4" | - |
| LSH11 | 11 | 7 | 8.5 | 0.55-1.93 | Direct | 895x850x1050 | 195 | ||
| 11 | 10 | 10.5 | 0.43-1.62 | G3/4" | - | ||||
| LH15+ | 15 | 7 | 8.5 | 2.4 | Direct | 904x650x917 | 160 | G3/4" | - |
| LSH15 | 15 | 7 | 8.5 | 0.7-2.5 | Direct | 995x850x1200 | 215 | G1" | |
| 15 | 10 | 10.5 | 0.7-2.1 | - | |||||
| LSH18.5 | 18.5 | 7 | 8.5 | 0.9-3.3 | Direct | 995x850x1200 | 245 | G1" | - |
| 18.5 | 10 | 10.5 | 0.8-2.7 | ||||||
| LH22+ | 22 | 7 | 8.5 | 3.8 | Direct | 954x725x1090 | 220 | G3/4" | - |
| LSH22 | 22 | 7 | 8.5 | 1.2-4.1 | Direct | 1158x1050x1350 | 335 | G11/2" | - |
| 22 | 10 | 10.5 | 1.1-3.4 | ||||||
| LH30+ | 30 | 7 | 8.5 | 5.6 | Direct | 1238x848x1280 | 350 | G11/2" | - |
| LSH30 | 30 | 7 | 8.5 | 1.6-5.7 | Direct | 1158x1050x1350 | 370 | G11/2" | - |
| 30 | 10 | 10.5 | 1.5-4.8 | ||||||
| LH37+ | 37 | 7 | 8.5 | 6.7 | Direct | 1238x848x1280 | 350 | G1 1/2" | - |
| LSH37 | 37 | 7 | 8.5 | 2.3-7.0 | Direct | 1246x1197x1500 | 495 | G1 1/2" | - |
| 37 | 10 | 10.5 | 2.1-5.6 | ||||||
| LH45+ | 45 | 7 | 8.5 | 8.3 | Direct | 1445x1059x1467 | 615 | G2" | - |
| LSH45 | 45 | 7 | 8.5 | 2.5-8.5 | Direct | 1246x1197x1500 | 530 | G1 1/2" | - |
| 45 | 10 | 10.5 | 2.6-6.8 | ||||||
| LH55+ | 55 | 7 | 8.5 | 10.6 | Direct | 1445x1059x1467 | 615 | G2" | - |
| LSH55 | 55 | 7 | 8.5 | 2.7-11.0 | Direct | 1656x1089x1840(Air Cooled) | 840 (Air Cooled) | G2" | - |
| 55 | 10 | 10.5 | 2.4-9.4 | ||||||
| LSH55 | 55 | 7 | 8.5 | 2.6-11.0 | Direct | 1690x1089x1650(Water Cooled) | 779(Water Cooled) | G2" | G1 1/4" |
| 55 | 10 | 10.5 | 2.3-9.4 | ||||||
| LSH75 | 75 | 7 | 8.5 | 3.2-13.1 | Direct | 1656x1089x1840 (Air Cooled) | 865 (Air Cooled) | G2" | - |
| 75 | 10 | 10.5 | 2.6-11.2 | ||||||
| LSH75 | 75 | 7 | 8.5 | 3.1-13.0 | Direct | 1690x1089x1650(Water Cooled) | 792 (Water Cooled) | G2" | G1 1/4" |
| 75 | 10 | 10.5 | 2.8-10.9 | ||||||
| LSH90 | 90 | 7 | 8.5 | 4.0-17.4 | Gear | 1756x1089x1840(Air Cooled) | 1080(Air Cooled) | G2" | G1 1/4" |
| 90 | 10 | 10.5 | 3.6-14.5 | 1790x1089x1650(Water Cooled) | 996(Water Cooled | ||||
| Model |
Power (kW) |
Pressure (bar) |
F.A.D (m3/min) |
Dimension Length*Width*Height(mm) |
Weight (kg) |
Connection | |
| Outlet | Water Pipe | ||||||
| LSH110 | 110 |
7-8.5 10.5 |
5.1-19.6 5.9-16.6 |
2061x1326x2000(Air Cooled) 2065x1299x2000(Water Cooled) |
1490/1393 | DN80 | G1 1/4" |
| LSH110+ | 110 | 7-8.5 | 5.2-20.7 |
2061x1326x2000(Air Cooled) 2065x1299x2000(Water Cooled) |
1490/1390 | DN80 | G1 1/4" |
| 10-13 | 6.1-17.6 | ||||||
| LSV110++ | 110 |
7-8.5 10.5 |
6.6-23.4 5.7-19.5 |
2827x1558x2000 | 2630/2460 | DN80 | G1 1/4" |
| LSH132 | 132 | 7-8.5 | 5.8-23.8 |
2061x1326x2000(Air Cooled) 2065x1299x2000(Water Cooled) |
1580/1470 | DN80 | G11 /4" |
| 10.5 | 5.9-20.2 | ||||||
| LSH132+ | 132 | 7-8.5 | 5.9-24.6 |
2061x1326x2000 (Air Cooled) 2065x1299x2000(Water Cooled) |
1580/1470 | DN80 | G11 /4" |
| 10-13 | 6.1-20.8 | ||||||
