| Model | LS LP Series (Fix Speed) & LSV LP Series (VSD) |
| Configuration | Variable Speed Drive |
| Category | Air-cooled Professional Type |
| Pressure | 0.5-0.8bar/1bar/40bar |
| Power | 7.5-250kW |
| Air-end | Atlas Copco Air-end |
Linghein LSW Series Oil-Free Screw Air Compressor is a leading Oil-Free Screw Air Compressor designed for purity and efficiency. This Oil-Free Screw Air Compressor achieves Class 0 Clean Air by eliminating oil contamination risks entirely. As an Energy Efficient Oil-Free solution, the Linghein LSW Series Oil-Free Screw Air Compressor reduces energy use while sustaining high output. Smart IoT Monitoring provides real-time insights for this Oil-Free Screw Air Compressor. The Sustainable Oil-Free design makes this Oil-Free Screw Air Compressor environmentally responsible.
This Oil-Free Screw Air Compressor delivers consistent Class 0 Clean Air across demanding applications. The Energy Efficient Oil-Free technology optimizes performance in the Linghein LSW Series Oil-Free Screw Air Compressor. Users benefit from Smart IoT Monitoring that enhances control of this Oil-Free Screw Air Compressor. Sustainable Oil-Free principles guide the development of every Oil-Free Screw Air Compressor in the LSW Series. Class 0 Clean Air output from this Energy Efficient Oil-Free system ensures product safety.
Linghein (Shanghai) Gas Technology Co., Ltd. is a wholly owned subsidiary of the Atlas Copco Group, dedicated to delivering high-quality, clean, and reliable compressed air solutions across a wide range of industries. Since joining Atlas Copco in 2011, Linghein has integrated world-class screw compressor technology with a continuously evolving R&D system, enabling advanced manufacturing and continuous product innovation. This expertise powers the Oil-Free Screw Air Compressor with superior Energy Efficient Oil-Free capabilities, Class 0 Clean Air delivery, Smart IoT Monitoring features, and Sustainable Oil-Free design.
In pharmaceutical production, this Oil-Free Screw Air Compressor supplies vital Class 0 Clean Air. The Energy Efficient Oil-Free operation lowers costs for this Oil-Free Screw Air Compressor. Smart IoT Monitoring optimizes the performance of the Oil-Free Screw Air Compressor. Sustainable Oil-Free benefits support green goals with this Oil-Free Screw Air Compressor. Food processing industries trust the Class 0 Clean Air from this Energy Efficient Oil-Free Oil-Free Screw Air Compressor.
Electronics manufacturing relies on the Oil-Free Screw Air Compressor for contamination-free Class 0 Clean Air. Energy Efficient Oil-Free technology makes this Oil-Free Screw Air Compressor cost-effective. Smart IoT Monitoring enables remote management of the Oil-Free Screw Air Compressor. The Sustainable Oil-Free design enhances the appeal of this Oil-Free Screw Air Compressor. Medical applications benefit from the Class 0 Clean Air produced by this Energy Efficient Oil-Free system.
Innovation in the Linghein LSW Series Oil-Free Screw Air Compressor focuses on advanced rotors for better Energy Efficient Oil-Free results. This Oil-Free Screw Air Compressor maintains Class 0 Clean Air through precision engineering. Smart IoT Monitoring adds intelligence to the Oil-Free Screw Air Compressor. Sustainable Oil-Free practices reduce impact across the Oil-Free Screw Air Compressor lifecycle. These features elevate this Oil-Free Screw Air Compressor above competitors.
Technical advantages of this Oil-Free Screw Air Compressor include stable pressure and low maintenance. Energy Efficient Oil-Free performance ensures savings with the Oil-Free Screw Air Compressor. Class 0 Clean Air protects equipment when using this Oil-Free Screw Air Compressor. Smart IoT Monitoring prevents issues in the Oil-Free Screw Air Compressor. The Sustainable Oil-Free approach makes this Oil-Free Screw Air Compressor future-ready.

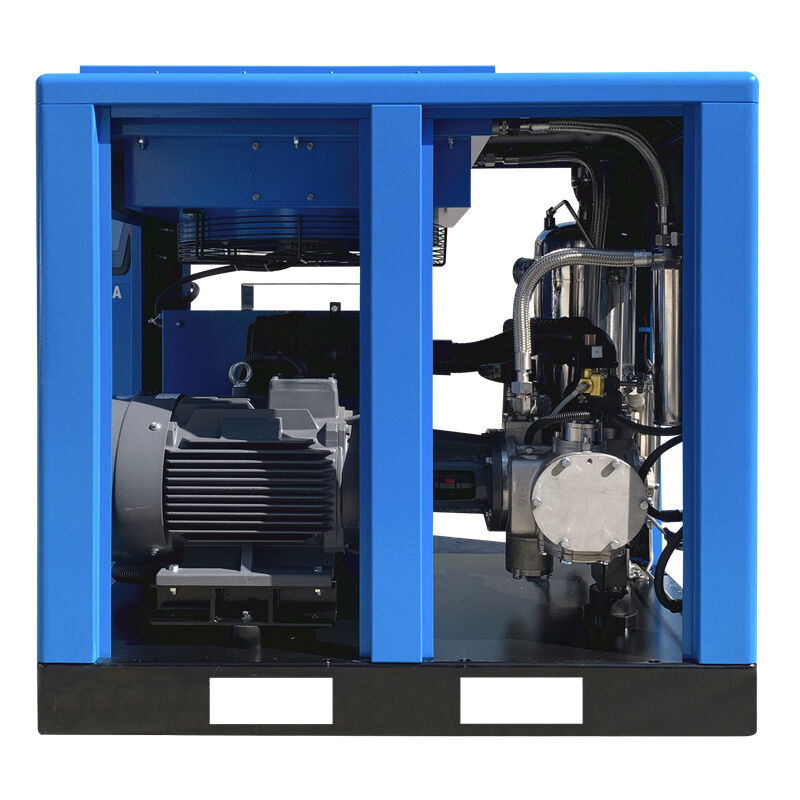

Stainless Steel Water-Lubricated Air-end
Stainless steel alloy air-end with optimized screw profile delivers higher airflow and efficient near-isothermal compression for stable, energy-saving performance.
Reliable Water & Filtration System
Full stainless steel water circuit combined with an integrated industrial-grade water purifier and high-efficiency air filtration (up to 99.9%) ensures clean operation, corrosion resistance, and longer component life.
Intelligent & Durable Design
Customized stainless steel solenoid valve, dedicated unloading valve, and premium ABB electrical components provide stable control, smoother operation, and long-term reliability.
Flexible Configuration Options
Available in permanent magnet and two-stage medium-pressure models to meet different airflow, pressure, and energy-efficiency requirements across various industrial applications.
Designed for industries requiring clean and stable compressed air, this water-lubricated compressor is ideal for food processing, pharmaceuticals, textiles, electronics, and chemical applications. Its oil-free compression design, corrosion-resistant water circuit, and high-efficiency filtration ensure reliable operation, low contamination risk, and stable performance in demanding production environments.
| Model |
Power (kW) |
Capacity F.A.D(m/min) |
Noise dB |
Water Pipe |
Water Intake (m3/h) |
Water (L) |
Dimension(mm) Length*Width*Height |
Weight (kg) |
Outlet | ||
| 0.5~0.8Mpa | 1.0Mpa | ||||||||||
| LSW-8A PM | 7.5 | 0.5~1.1 | 0.4~0.9 | 57 | - | 10 | 1060x630x1106 | 320 | 3/4" | ||
| LSW-11A PM | 11 | 0.7~1.7 | 0.6~1.4 | 60 | - | - | 26 | 1200x755x1130 | 400 | 3/4" | |
| LSW-15A PM | 15 | 1.0~2.3 | 0.9~2.0 | 60 | - | - | 26 | 1200x755x1130 | 440 | 3/4" | |
| LSW-18A PM | 18.5 | 1.2~3.0 | 1.0~2.6 | 63 | - | - | 30 | 1400x900x1285 | 640 | 1" | |
| LSW-22A PM | 22 | 1.5~3.6 | 1.3~3.0 | 63 | - | - | 30 | 1400x900x1285 | 640 | 1" | |
| LSW-30A PM | 30 | 2.1~5.1 | 1.8~4.3 | 66 | - | - | 40 | 1400x950x1390 | 760 | 1 1/4" | |
| LSW-37A PM | 37 | 2.6~6.4 | 2.2~5.3 | 66 | - | - | 40 | 1580x1000x1485 | 880 | 1 1/4" | |
| LSW-45W PM | 45 | 3.3~8.2 | 2.8~6.3 | 68 | 2" | 10 | 90 | 1800x1360x1670 | 1050 | 2" | |
| LSW-55W PM | 55 | 4.0~10.0 | 3.4~8.5 | 69 | 2" | 12 | 100 | 1800x1360x1670 | 1100 | 2" | |
| LSW-75W PM | 75 | 5.2~13.0 | 4.4~11.1 | 72 | 2" | 18 | 100 | 1800x1360x1670 | 1230 | 2" | |
| LSW-90W PM | 90 | 6.9~17.2 | 5.9~14.6 | 73 | 2" | 20 | 120 | 2200x1550x1800 | 2080 | 2 1/2" | |
| LSW-110W PM | 110 | 8.2~20.3 | 7.0~16.6 | 75 | 2" | 24 | 120 | 2200x1550x1800 | 2230 | 2 1/2" | |
| LSW-132W PM | 132 | 9.7~24.1 | 8.2~20.0 | 75 | 2" | 30 | 120 | 2200x1550x1800 | 2360 | 2 1/2" | |
| LSW-160W PM | 160 | 11.3~28.2 | 9.6~24.0 | 77 | 2" | 35 | 160 | 2700x1800x1970 | 3900 | DN80 | |
| LSW-185W PM | 185 | 12.9~32.1 | 11.0~27.3 | 77 | 2" | 38 | 160 | 2700x1800x1970 | 4050 | DN80 | |
| LSW-200W PM | 200 | 13.8~34.5 | 11.7~29.3 | 78 | 2" | 42 | 200 | 2700x1800x1970 | 4200 | DN100 | |
| LSW-220W PM | 220 | 15.5~38.6 | 13.2~32.8 | 79 | 2" | 47 | 200 | 2700x1800x1970 | 4400 | DN100 | |
| LSW-250W PM | 250 | 17.1~42.6 | 14.5~36.2 | 79 | 2" | 53 | 200 | 2700x1800x1970 | 4800 | DN100 | |
| *PM: Permanent Magnet A: Air Cooled W:Water Cooled | |||||||||||
| Model |
Power (kW) |
Capacity F.A.D(m/min) |
Noise dB |
Water Pipe |
Water Intake (m3/h) |
Water (L) |
Dimension(mm) Length*Width*Height |
Weight (kg) |
Outlet | |||||||
| 0.5~0.8Mpa | 1.0Mpa | |||||||||||||||
| LSW-74W PM | 37+37 | 40 | 6.5 | 70 | G2" | 18 | 86 | 2000x1500x1630 | 1900 | DN25 | ||||||
| LSW-90W PM | 45+45 | 40 | 7.8 | 72 | G2" | 28 | 130 | 2650x1710x1700 | 2300 | DN32 | ||||||
| LSW-110W PM | 55+55 | 40 | 10.0 | 72 | G2" | 28 | 140 | 2650x1710x1700 | 2700 | DN32 | ||||||
| LSW-150W PM | 75+75 | 40 | 12.5 | 72 | G2" | 28 | 150 | 2650x1710x1700 | 3000 | DN32 | ||||||
| LSW-180W PM | 90+90 | 40 | 16.0 | 74 | G2" | 38 | 170 | 3000x1680x1860 | 3500 | DN40 | ||||||
| LSW-220W PM | 110+110 | 40 | 20.0 | 76 | G2" | 47 | 170 | 3000x1680x1860 | 3700 | DN40 | ||||||
| LSW-242W PM | 132+110 | 40 | 23.0 | 76 | DN65 | 53 | 170 | 3000x1680x1860 | 4000 | DN40 | ||||||
| * PM: Permanent Magnet W: Water Cooled | ||||||||||||||||
| Model |
Power (kW) |
Capacity F.A.D(m/min) |
Noise dB |
Water Pipe |
Water Intake (㎡/h) |
Water (L) |
Dimension(mm) Length*Width*Height |
Weight (kg) |
Outlet | |
| 0.5~0.8Mpa | 1.0Mpa | |||||||||
| LSW-8A | 7.5 | 1.05 | 0.8 | 57 | - | - | 10 | 1060x630x1106 | 300 | 3/4" |
| LSW-11A | 11 | 1.7 | 1.4 | 60 | - | - | 26 | 1200x755x1130 | 420 | 3/4" |
| LSW-15A | 15 | 2.2 | 1.9 | 60 | - | - | 26 | 1200x755x1130 | 420 | 3/4" |
| LSW-18A | 18.5 | 3.0 | 2.2 | 63 | - | - | 30 | 1400x900x1285 | 600 | 1" |
| LSW-22A | 22 | 3.6 | 3.0 | 63 | - | - | 30 | 1400x900x1285 | 620 | 1" |
| LSW-30A | 30 | 5.1 | 3.9 | 66 | - | - | 40 | 1400x950x1390 | 740 | 1 1/4" |
| LSW-37A | 37 | 6.3 | 5.3 | 66 | - | - | 40 | 1580x1000x1485 | 860 | 1 1/4" |
| LSW-45W | 45 | 7.8 | 6.3 | 68 | 2" | 10 | 90 | 1800x1360x1670 | 1020 | 2" |
| LSW-55W | 55 | 10.0 | 7.9 | 69 | 2" | 12 | 100 | 1800x1360x1670 | 1080 | 2" |
| *A:Air Cooled W:Water Cooled | ||||||||||
